Weighing Packing Machine

Weighing Packing Machine ZB-W60H10

Model: ZB-W60H10
Capacity: 10-40bags/min
Weighing range: 50g-10KG
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 4KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)4050×(W)1050×(H)3000mm
Packing material: Plastic film | Paper film | Premade pouch
Description

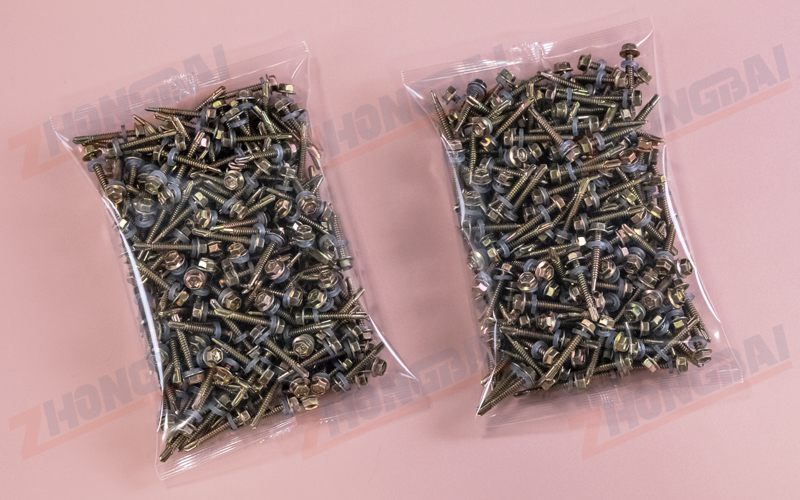

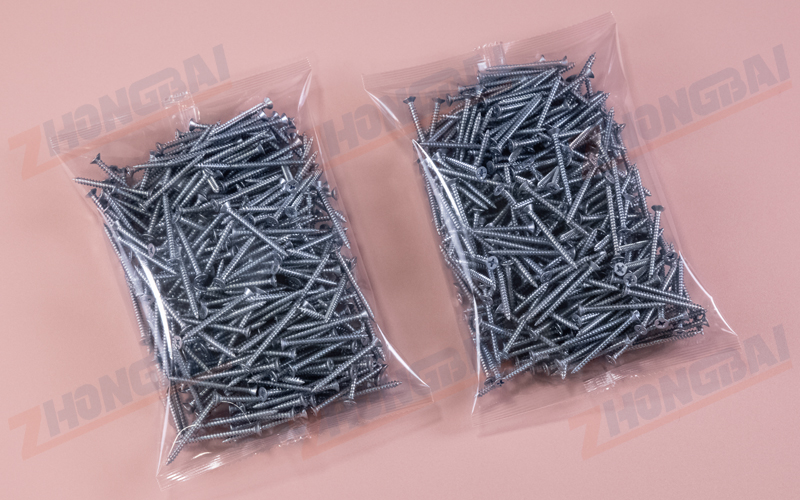

         ● Fasteners: screw, bolt, nut, washer, rivets, nails etc.

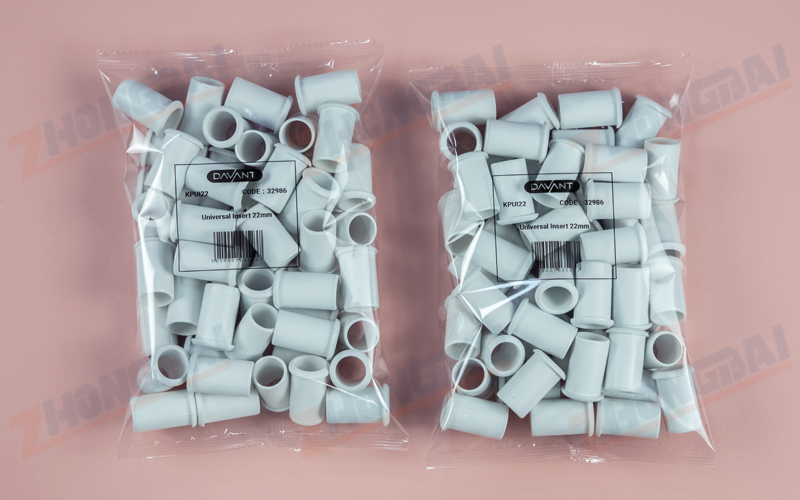

         ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks,small plastic parts.
         ● Hardware Parts: hardware components, hardware connectors, metal parts etc.
         ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc.
         ● Others: small hardware or plastic parts, regular shape or irregular shape of parts.





      ● The high accuracy 10 heads combination weighing system flexible for various type of parts.

      ● Mitsubishi PLC control, and there is English touchable human-machine operation interface, it is easy to operate.

      ● Stainless steel structure, it is only necessary to set the needed parameters at the display screen, the control system can automatically optimize. and match with the actions, realizing the optimal packing speed.

      ● ZHONGBAI advanced programmable control system, ensure the machine running stable and reliable with easy operation.

      ● Machine equip with safety protection device for each dangerous parts, ensure the safety operation.

      ● Parts weighing, bag making, filling, sealing, and output bags counting can be done automatically.
