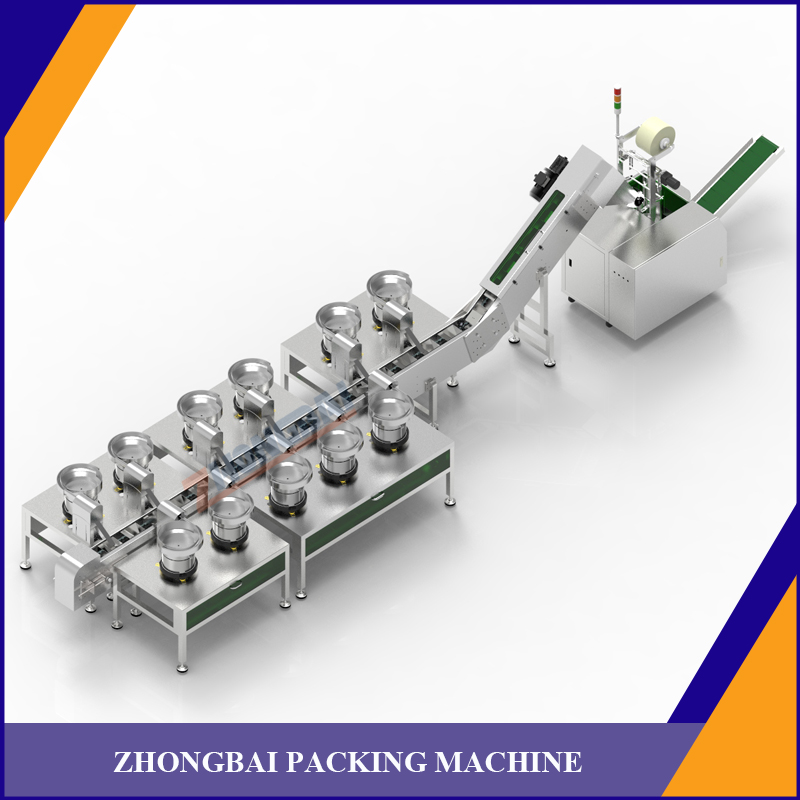

Screw Packing Machine with Eleven Bowls Chain Conveyor

Screw Packing Machine with Eleven Bowls Chain Conveyor

Model: ZB-T60DX
Capacity: 10-30 bags/min (depends on counting quantity)
Counting quantity: Can be adjusted
Bag size: Width:30-150mm, Length:30-150mm
Total power: 5.3KW
Voltage: 220V/50HZ
Packaging material : Plastic film
Machine dimension: 6500*1600*1750mm

INQUIRY

Description Video

● Fasteners: screw, bolt, nut, washer, rivets, nails etc.
● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
● Hardware Parts: hardware components, hardware connectors, metal parts etc.
● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc.
● Others: small hardware or plastic parts, regular shape or irregular shape of parts.

● The vibratory bowl and precise counting control system are customized according to the parts. Ensure the precision quantity of each bags.

● Mitsubishi PLC control, and there is English touchable human-machine operation interface, it is easy to operate. High degree of automation.

● Stainless steel structure, it is only necessary to set the needed parameters at the display screen ,the control system can automatically optimize and match with the actions, realizing the optimal packing speed.

● Control by intelligent temperature controller, which guarantee that the sealing has good appearance and flatness.

● ZHONGBAI advanced programmable control system, ensure the machine running stable and reliable with easy operation.

● Machine equip with safety protection device for each dangerous parts, ensure the safety operation.

● Parts counting, bag making, filling, sealing, and bags counting can be done automatically.
